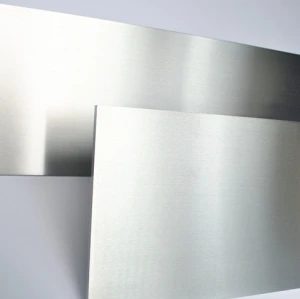

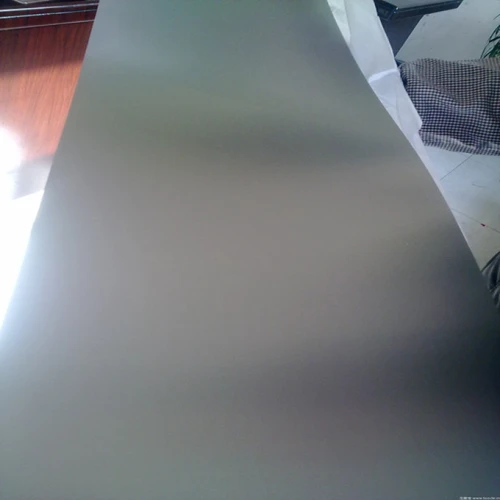

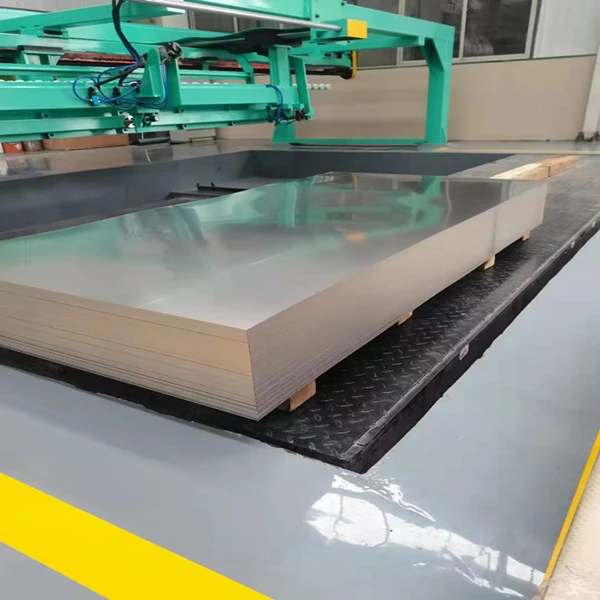

15333 titanium sheet β alloy used for glasses frame making
Item specifics
- Grade
- Ti-15V-3Al-3Cr-3Sn
- Thickness
- 0.5mm - 3mm
- Width
- ≤400mm
- Length
- ≤3000mm
- Technology
- Hot-Rolled, Cold-Rolled, Hot forging , Machining
- Condition
- Cold rolled(Y), Hot rolled(R), Annealed (M)
- Surface
- Pickling surface, Polished surface, Black surface
- Specifications
- glasses frame, Industrial，
Review
Description
As a titanium alloy sheet metal supplier,our titanium sheet have been strictly inspected and the quality is guaranteed. our hot sell Ti15333 sheet materials size are :0.5mm titanium sheet, 1mm titanium sheet,2mm titanium sheet.The following are detail informations about our titanium plates.
Chemical composition
Chemical composition, weight percent (%) | |||||||||||||||
Grade |
C ≤ |
O ≤ | N ≤ |
H ≤ |
Fe ≤ | Al | V |
Sn |
Cr | Ni | Mo | Other Elements Max. each | Other Elements Max. total | ||
Ti15333 | 0.05 | 0.15 | 0.05 | 0.015 | 0.25 | 2.5～3.5 | 14.0～16.0 | 2.5～3.5 | 2.5～3.5 | — | — | 0.1 | 0.4 | ||
Physical properties
Grade | Physical properties | ||||||
|
Tensile strength Min |
Yield strength (0.2%, offset) |
Elongation in 50mm Min (%) |
|||||
ksi | MPa | Min | Max | ||||
ksi | MPa | ksi | MPa | ||||
Ti15333 | — | 705～945 | — | 690 | — | 835 | 10 |
Tolerance (mm)
Thickness | width tolerance | ||
30~400 | — | — | |
0.3～0.5 | ±0.05 | — | — |
0.5～0.8 | ±0.07 | — | — |
0.8～1.1 | ±0.09 | — | — |
|
1.5～2.0
|
±0.11
|
—
|
—
|
|
2.0～3.0
|
±0.18
|
—
|
—
|
Features :
High tensile strength;
High corrosion resistance;
Low density, good thermal stability;
Non-ferromagnetic;
Good bio-compatibility;
High temperature and low temperature resistance;
High resistance to strong acid and strong alkali and so on.
Application :
Glass frame;
Sports goods manufacturing.
Testing :
Chemical composition test,
Physical properties test,
Appearance defects inspection,
Ultrasonic flaw detection,
Eddy current testing.
