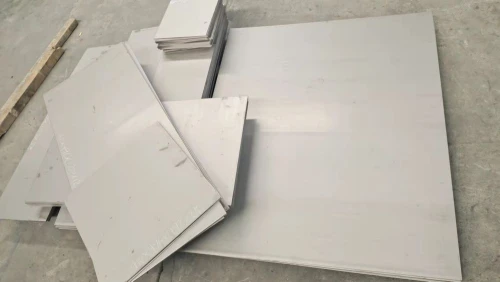

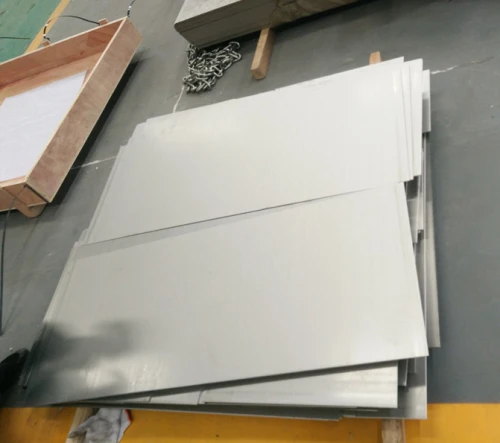

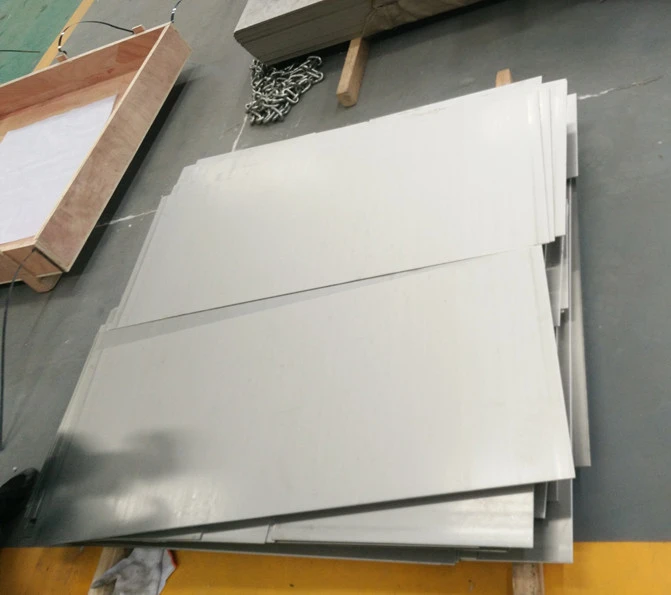

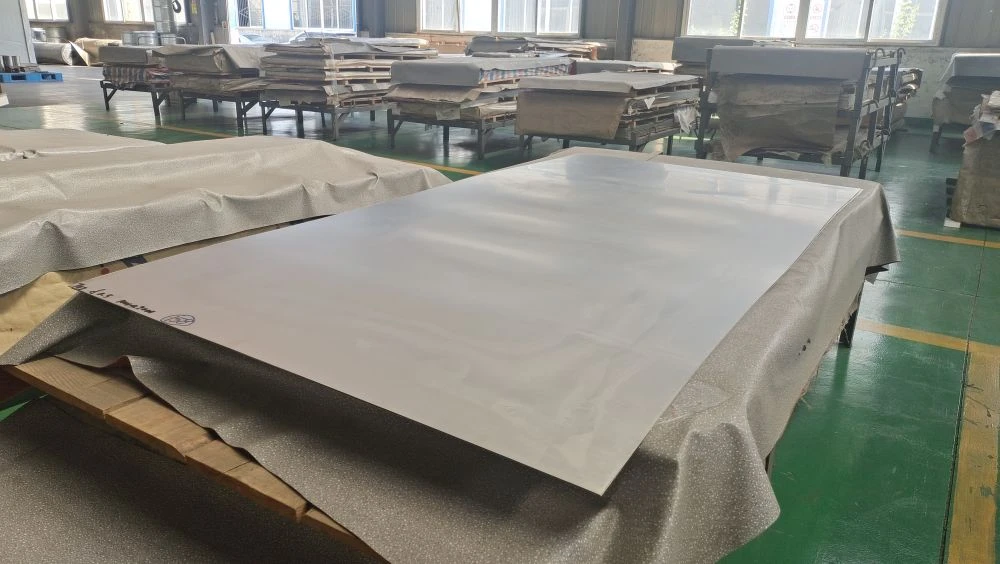

Grade 5 titanium sheet with high strength ams4911 annealed state for aerospace
Item specifics
- Grade
- Gr5, Gr7, Gr9,Gr12, Gr23
- Thickness
- 0.5mm - 50 mm
- Width
- 10mm - 2000mm
- Length
- ≤3000mm
- Technology
- Hot-Rolled, Cold-Rolled, Hot forging , Machining
- Condition
- Cold rolled(Y), Hot rolled(R), Annealed (M)
- Surface
- Pickling surface, Polished surface, Black surface
- Specifications
- Aerospace, Medical, Industrial
Review
Description
We supply 6al 4v titanium sheet for many years,our titanium metal sheet price is attractive and we have been strictly inspected and the quality is guaranteed. We provide titanium sheet 2mm in stock. The following are detail informations about our titanium plates.
Grade |
Gr5, Gr7, Gr9, Gr12, Gr23 |
||
Standard | ASTMB265,ASTM F136,AMS4906,AMS4911 | ||
Thickness |
0.5mm - 50 mm |
||
Width |
10mm - 2000mm |
||
Length |
≤3000mm |
||
Technology |
Hot-Rolled, Cold-Rolled, Hot forging , Machining |
||
Condition |
Cold rolled(Y), Hot rolled(R), Annealed (M), Quenching(C)
|
||
Surface |
Pickling surface, Polished surface, Black surface |
||
Specifications |
Aerospace, Medical, Industrial
|
Chemical composition
Chemical composition, weight percent (%) | |||||||||||||||
Grade |
C ≤ |
O ≤ | N ≤ |
H ≤ |
Fe ≤ | Al | V |
Pd |
Ru | Ni | Mo | Other Elements Max. each | Other Elements Max. total | ||
Gr5 | 0.08 | 0.20 | 0.05 | 0.015 | 0.40 | 3.5~4.5 | — | — | — | — | 0.1 | 0.4 | |||
Gr7 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | 0.12~0.25 | — | — | — | 0.1 | 0.4 | ||
Gr9 |
0.08 |
0.35 | 0.02 |
0.015 |
0.25 | 2.5~3.5 | 2.0~3.0 |
— |
— | — | — | 0.1 | 0.4 | ||
Gr12 |
0.08 |
0.25 | 0.03 |
0.015 |
0.30 | — | — |
— |
— | 0.6~0.9 | 0.2~0.4 | 0.1 | 0.4 | ||
Gr23 | 0.08 | 0.13 | 0.03 | 0.125 | 0.25 | 5.5-6.75 | 3.5~4.5 | — | — | — | — | 0.1 | 0.4 |
Physical properties
Grade | Physical properties | ||||||
Tensile strength Min |
Yield strength (0.2%, offset) |
Elongation in 50mm Min (%) |
|||||
ksi | MPa | Min | Max | ||||
ksi | MPa | ksi | MPa | ||||
Gr5 | 130 | 895 | 120 | 828 | — | — | 10 |
Gr7 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
Gr9 |
90 |
620 | 70 |
483 |
— | — | 15 |
Gr12 |
70 |
483 | 50 |
348 |
— | — | 18 |
Gr23 | 120 | 828 | 110 | 759 | — | — | 10 |
Tolerance (mm)
Thickness | Width tolerance | ||
400~1000 | 1000~2000 | >2000 | |
5.0~6.0 | ±0.35 | ±0.40 | ±0.60 |
6.0~8.0 | ±0.40 | ±0.60 | ±0.80 |
8.0~10.0 | ±0.50 | ±0.60 | ±0.80 |
10.0~15.0
|
±0.70
|
±0.80
|
±1.00
|
15.0~20.0
|
±0.70
|
±0.90
|
±1.20
|
20.0~30.0
|
±0.90
|
±1.00
|
±1.20
|
30.0~40.0 | ±1.10 | ±1.20 | ±1.50 |
40.0~50.0
|
±1.20
|
±1.50
|
±2.00
|
50.0~60.0 | ±1.60 | ±2.00 | ±2.50 |
Features :
High tensile strength;
High corrosion resistance;
Low density, good thermal stability;
Non-ferromagnetic;
Good bio-compatibility;
High temperature and low temperature resistance;
High resistance to strong acid and strong alkali and so on.
Application :
Chemical processing, medical instruments;
Aerospace, Industry, Navigation, Smelting;
Textile printing and dyeing;
Petrochemical industry;
Electroplating equipment;
Machining field, Automobile field;
Axis machining, the frame of the planes;
The equipment used in the sea water;
Nuclear industry;
Heat exchangers and condensers;
Construction industry etc.
Testing :
Chemical composition test,
Physical properties test,
Appearance defects inspection,
Ultrasonic flaw detection,
Eddy current testing.
What we can do for you?
- If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
