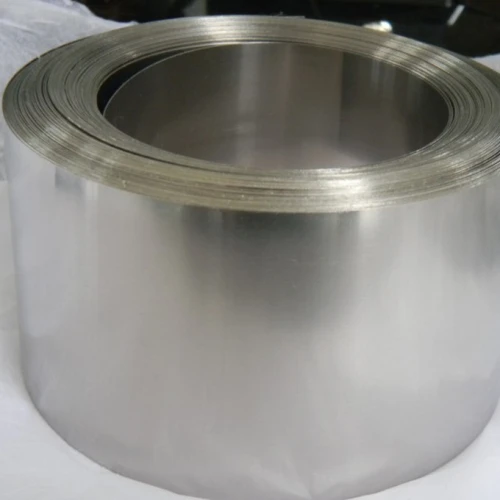

Titanium strips with astmb265 used for petrochemical industry
Item specifics
- Grade
- Gr1, Gr2,Gr7,Gr12
- Thickness
- 0.5mm - 5mm
- Width
- 30-1500mm
- Length
- ≥500
- Technology
- Hot-Rolled, Cold-Rolled, Hot forging
- Condition
- Cold rolled(Y), Hot rolled(R), Annealed (M)
- Surface
- Pickling surface, Polished surface, Bright surface
- Specifications
- Aerospace, Medical, Industrial
Review
Description
All of our titanium strip according ASTMB265，ASTMF67 produced,We both manufacture titanium alloy strip and pure strip, our titanium strip for sale to customers with high quality.
Chemical composition
Grade | Chemical composition, weight percent (%) | ||||||||||||||
|
C ≤ |
O ≤ | N ≤ |
H ≤ |
Fe ≤ | Al | V |
Pd |
Ru | Ni | Mo | Other Elements Max. each | Other Elements Max. total | |||
Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.20 | — | — | — | — | — | — | 0.1 | 0.4 | ||
Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | — | — | — | — | 0.1 | 0.4 | ||
|
Gr7 |
0.08 |
0.25 | 0.05 |
0.0015 |
0.30 | — | — |
— |
— | — | — | 0.1 | 0.4 | ||
|
Gr12 |
0.08 |
0.25 | 0.03 |
0.015 |
0.30 | — | — |
— |
— | 0.6～0.9 | 0.2～0.4 | 0.1 | 0.4 | ||
Physical properties
Grade | Physical properties | ||||||
|
Tensile strength Min |
Yield strength (0.2%, offset) |
Elongation in 50mm Min (%) |
|||||
ksi | MPa | Min | Max | ||||
ksi | MPa | ksi | MPa | ||||
Gr1 | 35 | 240 | 20 | 138 | 45 | 310 | 24 |
Gr2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
|
Gr7 |
50 |
345 | 40 |
275 |
65 | 450 | 20 |
|
Gr12 |
70 |
483 | 50 |
345 |
— | — | 18 |
Tolerance (mm)
Thickness Size | Thickness tolerance | Width tolerance | |
500~900 | 900~1500 | ||
0.3～0.5 | ±0.05 | ±0.60 | ±1.0 |
0.6～0.7 | ±0.06 | ||
0.8～0.9 | ±0.09 | ||
|
1.0～1.4
|
±0.13
|
||
|
1.5～1.9
|
±0.16
|
||
|
2.0～2.4
|
±0.20
|
||
2.5～3.9 | ±0.22 | ||
|
4.0～5.0
|
±0.3
|
||
Testing :
Chemical composition test,
Physical properties test,
Appearance defects inspection,
Ultrasonic flaw detection,
Eddy current testing.
Chemical processing, medical instruments;
Aerospace, Industry, power plant;
Textile printing and dyeing;
Petrochemical industry;
Electroplating equipment;
Machining field, Automobile field;
Electroytics plating;
The equipment used in the sea water;
Features :
Conductive oxide surface film;
High corrosion resistance;
Low density, good thermal stability;
Non-ferromagnetic;
Surface promotes drop-wise condensation;
High temperature and low temperature resistance;
High resistance to strong acid and strong alkali and so on.
