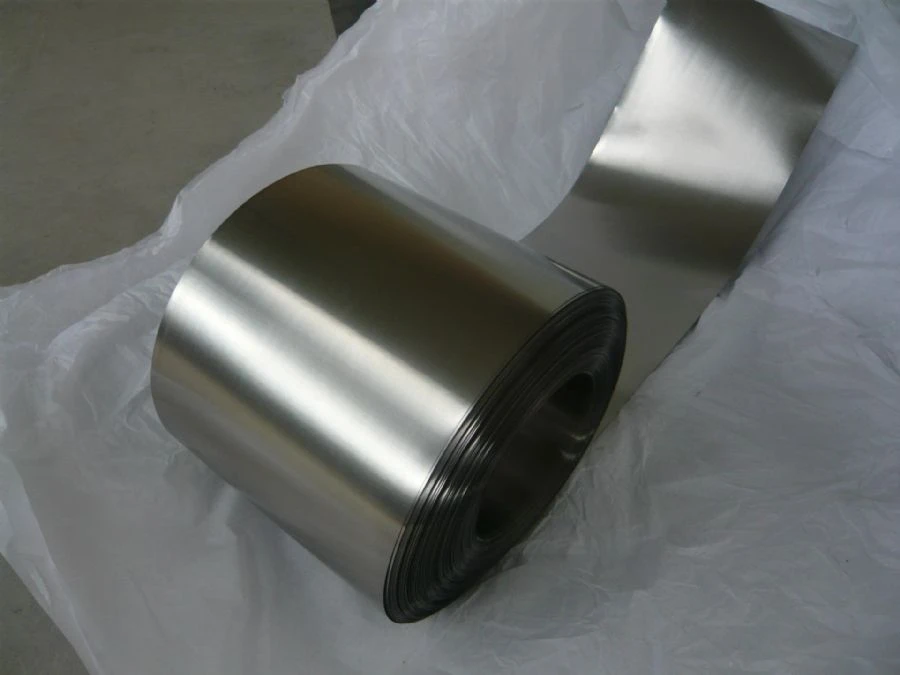

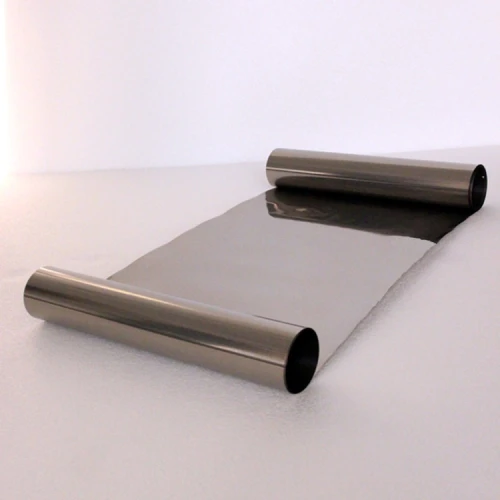

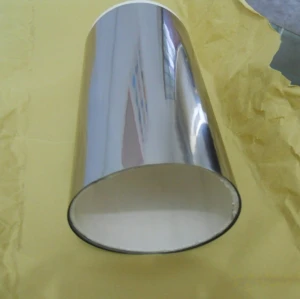

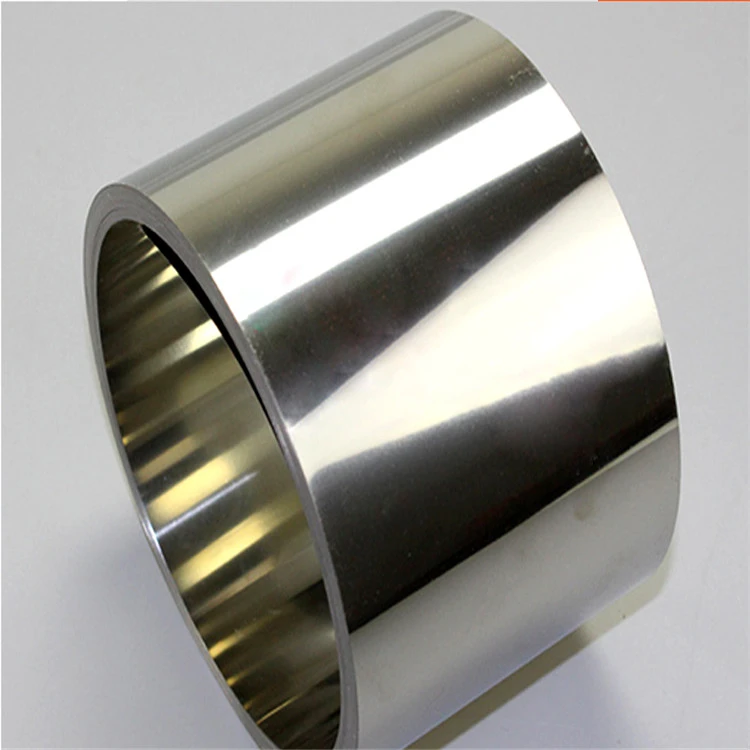

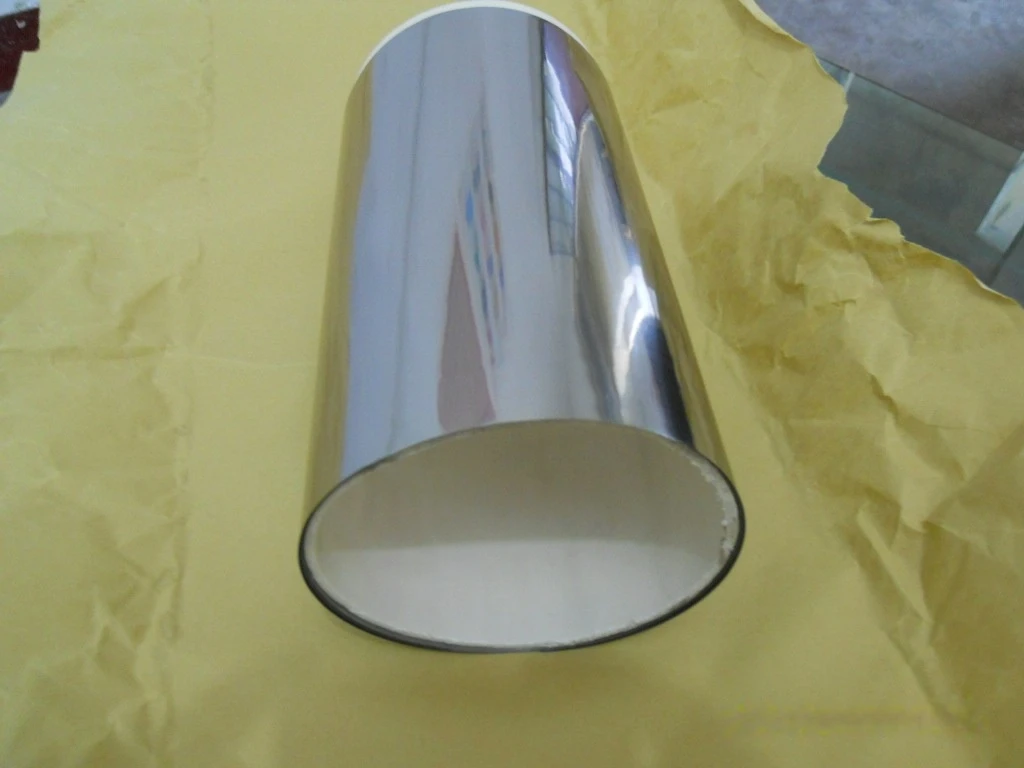

Titanium foil sheet in roll for sale used for speaker diaphragm
Item specifics
- Grade
- Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr12, Gr23
- Thickness
- 0.01mm - 0.1mm
- Width
- 30mm - 300mm
- Length
- ≥500mm
- Technology
- Cold-Rolled
- Condition
- Cold rolled(Y), Hot rolled(R), Annealed (M)
- Surface
- Bright surface
- Specifications
- Medical, Industrial,ornaments, sports goods
Review
Description
All of our titanium foil for sale have been strictly inspected and the quality is guaranteed. We provide grade 1 titanium foil ,titanium gr2 foil with customized services. The following are detail informations about our materials.
|
Grade |
Gr1, Gr2, Gr3, Gr4, Gr5,Gr7,Gr9,Gr12,Gr23 |
||
Standard | ASTMB265, ASTM F67, ASTM F136 | ||
|
Thickness |
0.01mm - 0.1 mm |
||
|
Width |
30mm - 300mm |
||
|
Length |
≥500mm |
||
|
Technology |
Hot-Rolled, Cold-Rolled, Hot forging , Machining |
||
|
Condition |
Cold rolled(Y), Hot rolled(R), Annealed (M), Quenching(C)
|
||
|
Specifications |
Aerospace, Medical, Industrial
|
||
Chemical composition
Grade | Chemical composition, weight percent (%) | ||||||||||||||
|
C ≤ |
O ≤ | N ≤ |
H ≤ |
Fe ≤ | Al | V |
Pd |
Ru | Ni | Mo | Other Elements Max. each | Other Elements Max. total | |||
Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.20 | — | — | — | — | — | — | 0.1 | 0.4 | ||
Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | — | — | — | — | 0.1 | 0.4 | ||
|
Gr3 |
0.08 |
0.35 | 0.05 |
0.0015 |
0.30 | — | — |
— |
— | — | — | 0.1 | 0.4 | ||
|
Gr4 |
0.08 |
0.25 | 0.03 |
0.015 |
0.30 | — | — |
— |
— | — | — | 0.1 | 0.4 | ||
Gr5 | 0.08 | 0.20 | 0.05 | 0.015 | 0.40 | 5.5～6.75 | 3.5～4.5 | — | — | — | — | 0.1 | 0.4 | ||
Gr7 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | 0.12～0.15 | — | — | — | 0.1 | 0.4 | ||
Gr9 | 0.08 | 0.15 | 0.03 | 0.015 | 0.25 | 2.5～3.5 | 2.0～3.0 | — | — | — | — | 0.1 | 0.4 | ||
Gr12 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | — | — | 0.6～0.9 | 0.2～0.4 | 0.1 | 0.4 | ||
Gr23 | 0.08 | 0.13 | 0.03 | 0.0125 | 0.25 | 5.5～6.5 | 3.5～4.5 | — | — | — | — | 0.1 | 0.4 | ||
Physical properties
Grade | Physical properties | ||||||
|
Tensile strength Min |
Yield strength (0.2%, offset) |
Elongation in 50mm Min (%) |
|||||
ksi | MPa | Min | Max | ||||
ksi | MPa | ksi | MPa | ||||
Gr1 | 35 | 240 | 20 | 138 | 45 | 310 | 24 |
Gr2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
|
Gr3 |
65 |
450 | 55 |
380 |
80 | 550 | 18 |
|
Gr4 |
80 |
550 | 70 |
483 |
95 | 655 | 15 |
Gr5 | 130 | 895 | 120 | 828 | — | — | 10 |
Gr7 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
Gr9 | 90 | 620 | 70 | 483 | — | — | 15 |
Gr12 | 70 | 483 | 50 | 345 | — | — | 18 |
Gr23 | 120 | 828 | 110 | 759 | — | — | 10 |
Tolerance (mm)
Thickness | thickness tolerance | width tolerance | Length tolerance |
30~300 | ＞500 | ||
0.01～0.02 | ±0.003 | ±0.50 | +10 0 |
0.03～0.05 | ±0.005 | ||
0.06～0.07 | ±0.007 | ||
|
0.08～0.10
|
±0.010
|
Testing :
Chemical composition test,
Physical properties test,
Appearance defects inspection,
Ultrasonic flaw detection,
Eddy current testing.
Application :
Chemical processing, medical instruments;
Aerospace, Industry, Navigation, Smelting;
Textile printing and dyeing;
Petrochemical industry;
Electroplating equipment;
Machining field, Automobile field;
Axis machining, the frame of the planes;
The equipment used in the sea water;
Nuclear industry;
Heat exchangers and condensers;
Construction industry etc.
Features :
High tensile strength;
High corrosion resistance;
Low density, good thermal stability;
Non-ferromagnetic;
Good bio-compatibility;
High temperature and low temperature resistance;
High resistance to strong acid and strong alkali and so on.
