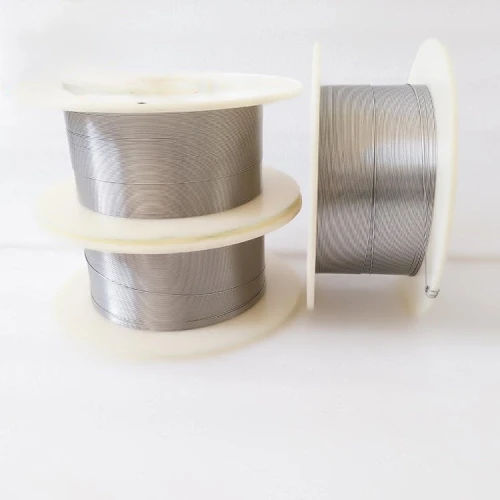

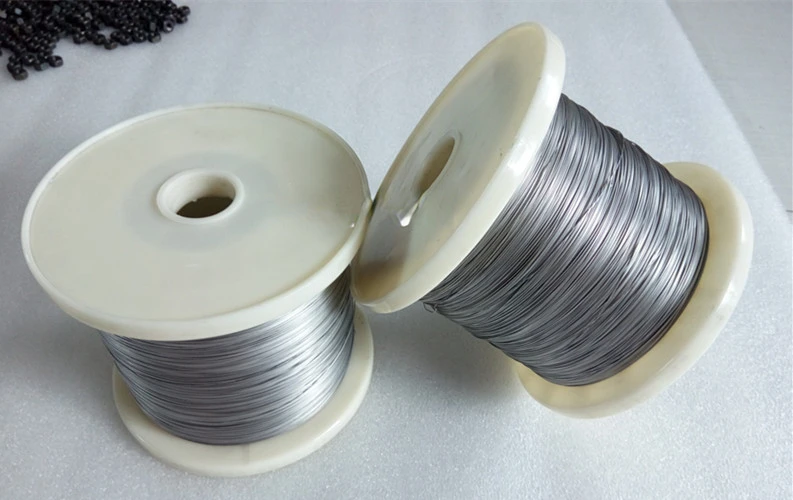

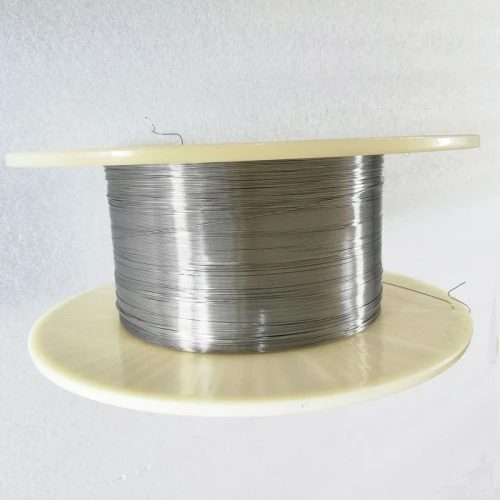

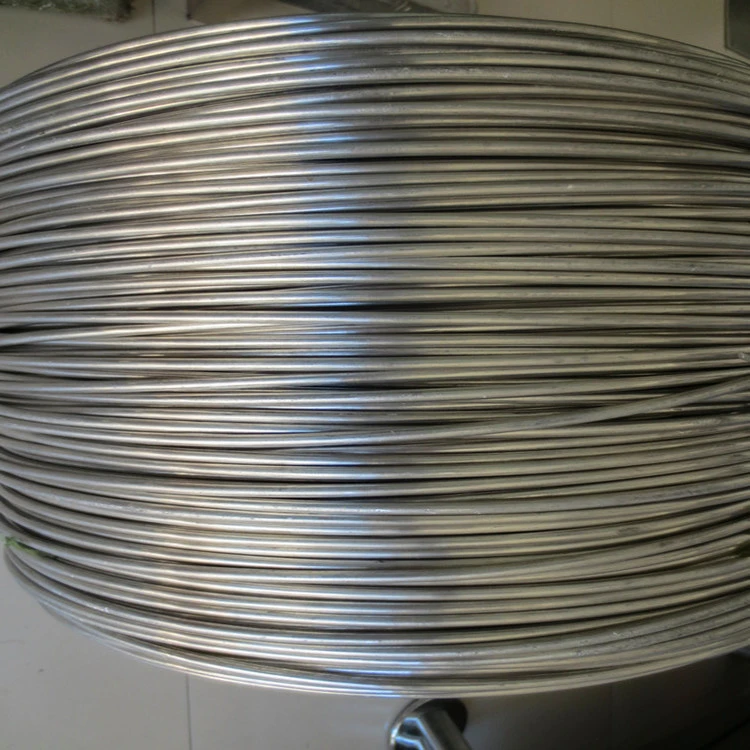

R60705 zirconium wire in coil shape with astmb550 standard used for electronics industry
Item specifics
- Grade
- R60702, R60704, R60705
- Diameter
- 0.1mm - 5mm
- Standard
- ASTMB550
- Technology
- Cold-Rolled，Hot rolled(R), Annealed (M)
- Condition
- Hard, Semi-hard, Mild
- Surface
- polished surface,black surface,sandblast
- Specifications
- Military , Electronics industry, Pipeline valve
Review
Description
All of our zirconium wire have been strictly inspected and the quality is guaranteed. We produce zirconium tig wire and aslo zirconium weldding wire with good service.The following are detail informations about our zirconium materials.
|
Grade |
R60702, R60704, R60705 |
||
Standard | ASTMB550 | ||
|
Diameter |
0.1mm - 5mm |
||
|
Technology |
Hot-Rolled, Cold-Rolled, Hot forging , Machining |
||
|
Condition |
Hard, Semi-hard, Mild
|
||
|
Surface |
Polished surface, Black surface |
||
|
Specifications |
Aerospace, Medical, Industrial
|
||
Chemical composition
|
Grade
|
Zr+Hf | Hf | Fe+Cr | Sn | H | N | C | Nb |
O
|
|
R60702(% Max)
|
99.2 | 99.2 | 0.20 | — | 0.005 | 0.025 | 0.05 | 0.005 |
0.16
|
R60703(% Max) | 98 | 99.2 | — | — | 0.005 | 0.025 | — | — | — |
R60704(% Max) | 97.5 | 99.2 | 0.20～0.40 | 1.0～2.0 | 0.005 | 0.025 | 0.05 | — | 0.18 |
R60705(% Max) | 95.5 | 99.2 | 0.20 | — | 0.005 | 0.025 | 0.05 | 2.0～3.0 | 0.18 |
R60706(% Max) | 95.5 | 99.2 | 0.20 | — | 0.005 | 0.025 | 0.05 | 2.0～3.0 | 0.16 |
Mechanical properties
Grade | Mechanical properties | |||
States | Rm (≥)/MPa | Rp0.2 (≥)/MPa | A50mm (≥)/% | |
|
Zirconium 702 (UNS R60702) |
Annealed
|
349
|
207
|
16 |
|
Zirconium 704 (UNS R60704) |
Annealed
|
413
|
241
|
14 |
Zirconium 705 (UNS R60705) | Annealed | 552 | 379 | 16 |
Testing :
Chemical composition test，
Room Temperature Tensile,
Bend Testing,
Metallography,
Micro-hardness,
Hardness Testing.
Application :
Production of chemical acid and alkali resistant equipment,
Military industry, electronics industry,
Pipeline valve materials,
Special high-strength and high-temperature alloy materials,
Electric vacuum and light bulb industry getters.
Features :
Zirconium has a strong affinity for oxygen,
Has corrosion resistance,
Can be used as hydrogen storage material,
Zirconium has good mechanical and heat transfer properties,
Zirconium has good plasticity and is easy to be processed into plates, wires, etc.
