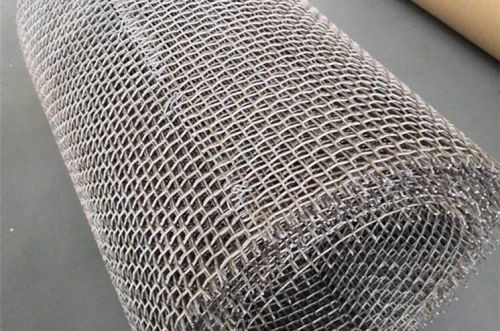

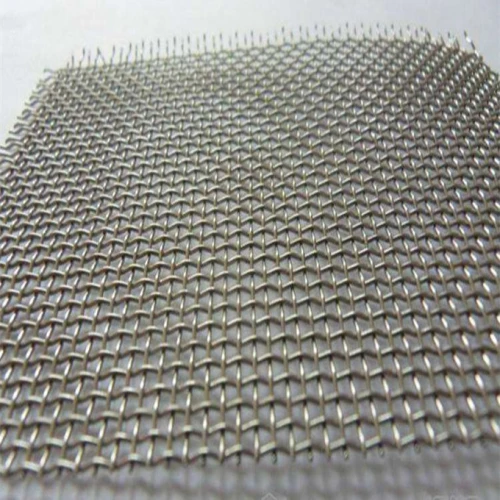

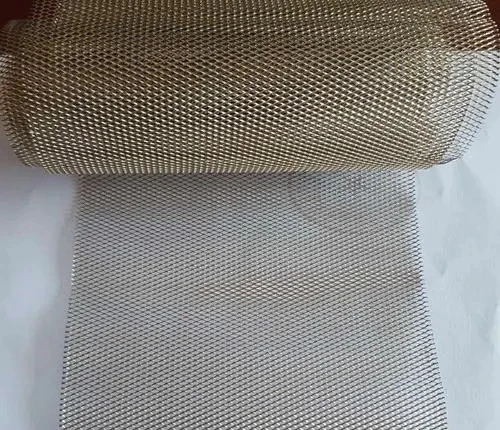

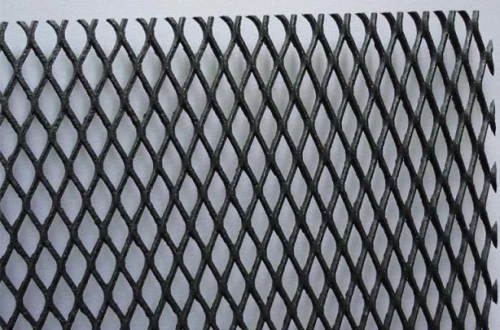

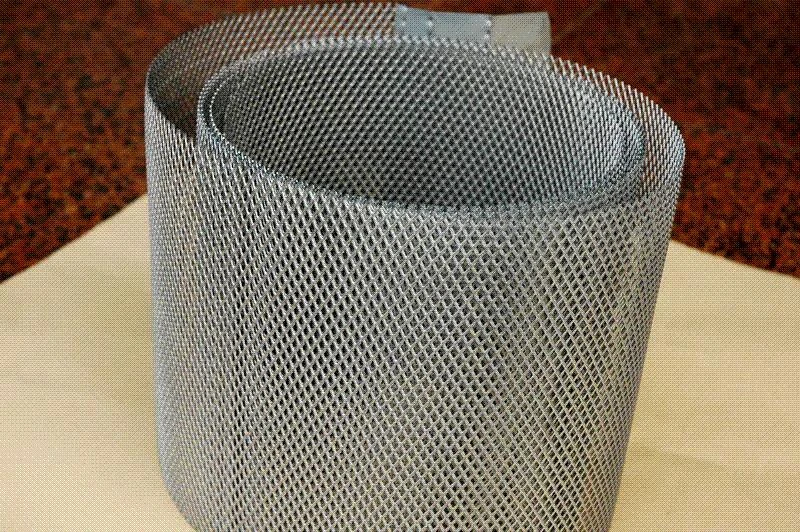

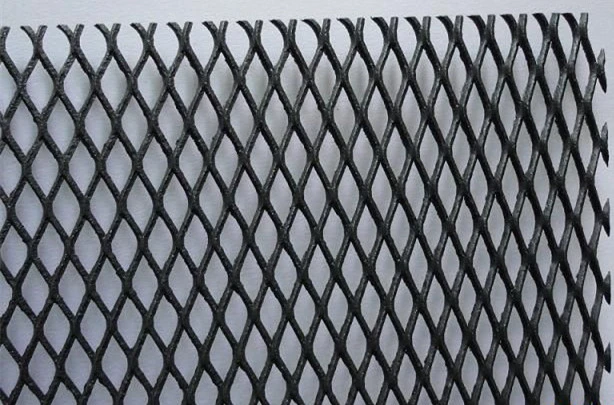

Pure titanium mesh sheet with hole size 3x6
Pure titanium mesh sheet with hole size 3x6
Pure titanium mesh sheet with hole size 3x6
Pure titanium mesh sheet with hole size 3x6
Pure titanium mesh sheet with hole size 3x6
Pure titanium mesh sheet with hole size 3x6

Item specifics

Grade
Gr1, Gr2, Gr3,Gr12
Thickness
0.5mm - 3.0mm
Width
400mm - 1200mm
Length
≤2000mm
Hole Size
3x6mm, 12.5x4.5mm
Condition
Cold rolled(Y), Hot rolled(R), Annealed (M)
Surface
Pickling surface, Black surface
Specifications
Chemical Industry, Medical, Industrial

Review

Description

All of our titanium mesh plate we have been strictly inspected and the quality is guaranteed. Our titanium mesh cost low for customers, we offer cutting titanium mesh sheet services. The following are detailed information about our materials.

Grade

Gr1, Gr2, Gr3, Gr12,

Standard
ASTMB265,ASTM F67

Thickness

0.5mm - 3.0mm

Width

400mm - 1200mm

Length

2000mm

Hole Size

3x6mm,12.5x4.5mm

Condition

Cold rolled(Y), Hot rolled(R), Annealed (M), Quenching(C)

Surface

Pickling surface, Black surface

Specifications

Aerospace, Medical, Industrial
Chemical composition

Grade

Chemical composition, weight percent (%)

C

O

N

H

Fe

Al

V

Pd

Ru

Ni

Mo

Other Elements

Max. each

Other Elements

Max. total

Gr1

0.08

0.18

0.03

0.015

0.20

0.1

0.4

Gr2

0.08

0.25

0.03

0.015

0.30

0.1

0.4

Gr3

0.08

0.35

0.05

0.015

0.30

0.1

0.4

Gr12

0.08

0.25

0.03

0.015

0.30

0.6~0.9

0.2~0.4

0.1

0.4

Physical properties

Grade

Physical properties

Tensile strength Min

Yield strength

(0.2%, offset)

Elongation in 50mm

Min (%)

ksi

MPa

Min

Max

ksi

MPa

ksi

MPa

Gr1

35

240

20

138

45

310

24

Gr2

50

345

40

275

65

450

20

Gr3

65

450

55

380

80

550

18

Gr12

70

480

50

345



18

Tolerance (mm)
Thickness
tolerance
Width
tolerance
Length
tolerance
0.5
±0.05
400~1200
+15~0
<2000
+20~0
0.6-0.9
±0.07
         1.0-1.5
±0.09
1.6-3.0
±0.12
Testing :
Chemical composition test,
Physical properties test,
Appearance defects inspection,
Eddy current testing.
Application :
Chemical processing, medical instruments;
Medical surgery; in petroleum industry
Acid and alkali environment,
Chemical fiber industrial,
Pickling in electroplating industrial,
Food, medicine, machinery manufacturing .
Features :
High tensile strength;
High corrosion resistance;
Low density, good thermal stability;
Non-ferromagnetic;
Good bio-compatibility;
High temperature and low temperature resistance;
High resistance to strong acid and strong alkali and so on.
What we can do for you?
If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
