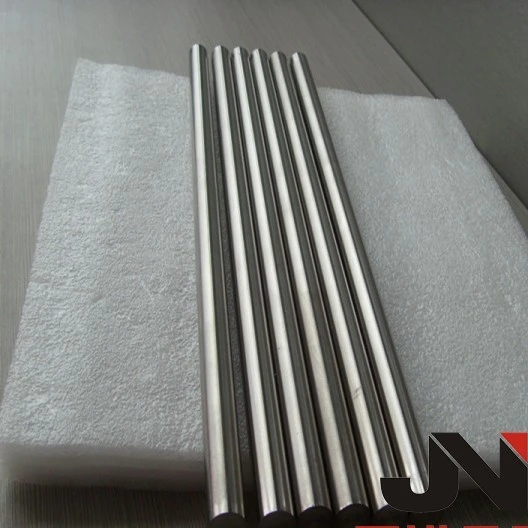

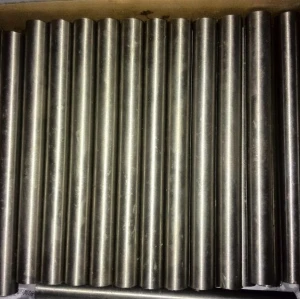

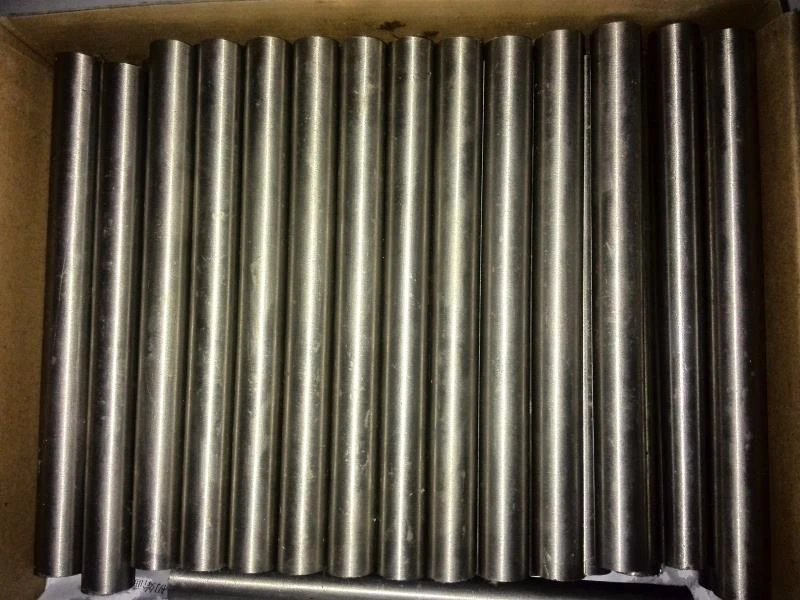

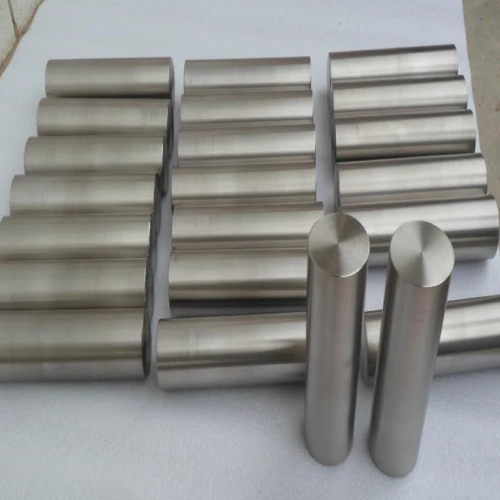

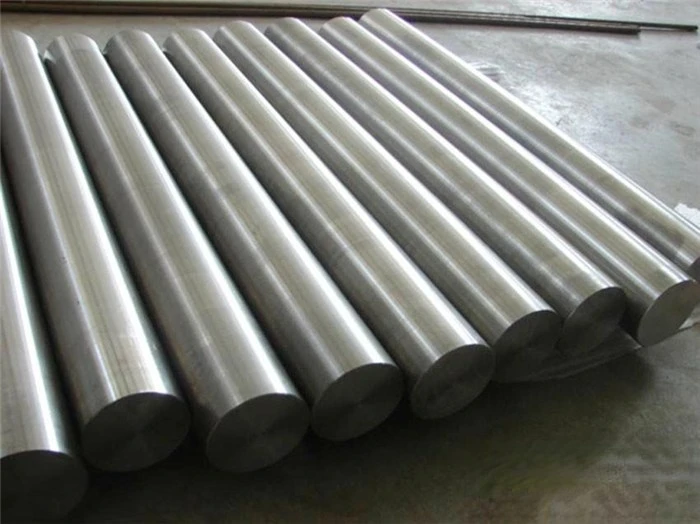

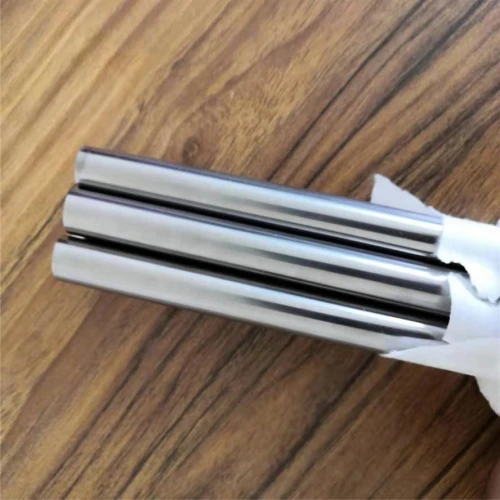

Low vapor pressure tantalum rod with astmb365 used in machinery processing
Item specifics
- Grade
- R05200, R05400
- Thickness
- 5mm - 80mm
- Standard
- ASTMB365
- Technology
- Cold-Rolled，Hot rolled(R), Annealed (M)
- Condition
- Hard, Semi-hard, Mild
- Surface
- polished surface，black surface
- Specifications
- Industrial,Aerospace,Medical
Review
Description
AS a tantalum rod supplier ,all of our tantalum bar stock we have been strictly inspected and the quality is guaranteed. We provide tantalum welding rod treatment and cutting tantalum bar services, our tantalum rod price is good. The following are detail informations about our tantalum materials.
|
Grade |
R05200, R05400 |
||
Standard | ASTMB708 | ||
|
Diamter |
5mm - 80 mm |
||
|
Length |
≤2000mm |
||
|
Technology |
Hot-Rolled, Cold-Rolled, Hot forging , Machining |
||
|
Condition |
Hard, Semi-hard, Mild
|
||
|
Surface |
Polished surface, Black surface |
||
|
Specifications |
Aerospace, Medical, Industrial
|
||
Chemical composition
|
Element
|
C | O | N | H | F | Mo | Nb | Ni |
Si
|
Ti
|
W
|
|
RO5200(% Max)
|
0.01 | 0.015 | 0.01 | 0.0015 | 0.01 | 0.02 | 0.1 | 0.01 |
0.005
|
0.001
|
0.05
|
|
RO5400(% Max)
|
0.01 | 0.03 | 0.01 | 0.0015 | 0.01 | 0.02 | 0.1 | 0.01 |
0.005
|
0.001
|
0.05
|
Physical properties
|
Grade
|
Thickness |
Tensile strength Min (MPa) |
Yield strength Min (MPa) (2%Residual strain) |
Elongation Min (%) (25.4mm Gage) |
RO5200(% Max),RO5400(% Max) | ≥0.1 |
172
|
103
|
25
|
Tolerance (mm)
Diamater | diamter tolerance | length tolerance |
5～6 | ±0.05 | ±2.0 |
7～10 | ±0.10 | ±2.0 |
11～16 | ±0.15 | ±2.0 |
|
17～18
|
±0.15
|
±2.0
|
|
18～25
|
±0.30
|
±2.0
|
|
26～40
|
±0.50
|
±2.0
|
41～50 | ±0.60 | ±2.0 |
|
51～65
|
±0.70
|
±2.0
|
66～80 | ±1.00 | ±2.0 |
Testing :
Chemical composition test，
Physical properties test，
Appearance defects inspection，
Ultrasonic flaw detection.
Application :
TElectron-beam melting，
Laboratory equipment，
Substitute for platinum，
Manufacturing super alloys，
Glass and ceramic industries，
Metallurgical，
Machinery processing，
Sputtering targets，
Aviation, aerospace industry,
Medical equipment, etc.
Features :
High melting point, low vapor pressure,
Good cold working performance,
High chemical stability, strong resistance to liquid metal corrosion,
Large dielectric constant of the surface oxide film.
